UTC Drug Tester

UTC-Drug Tester

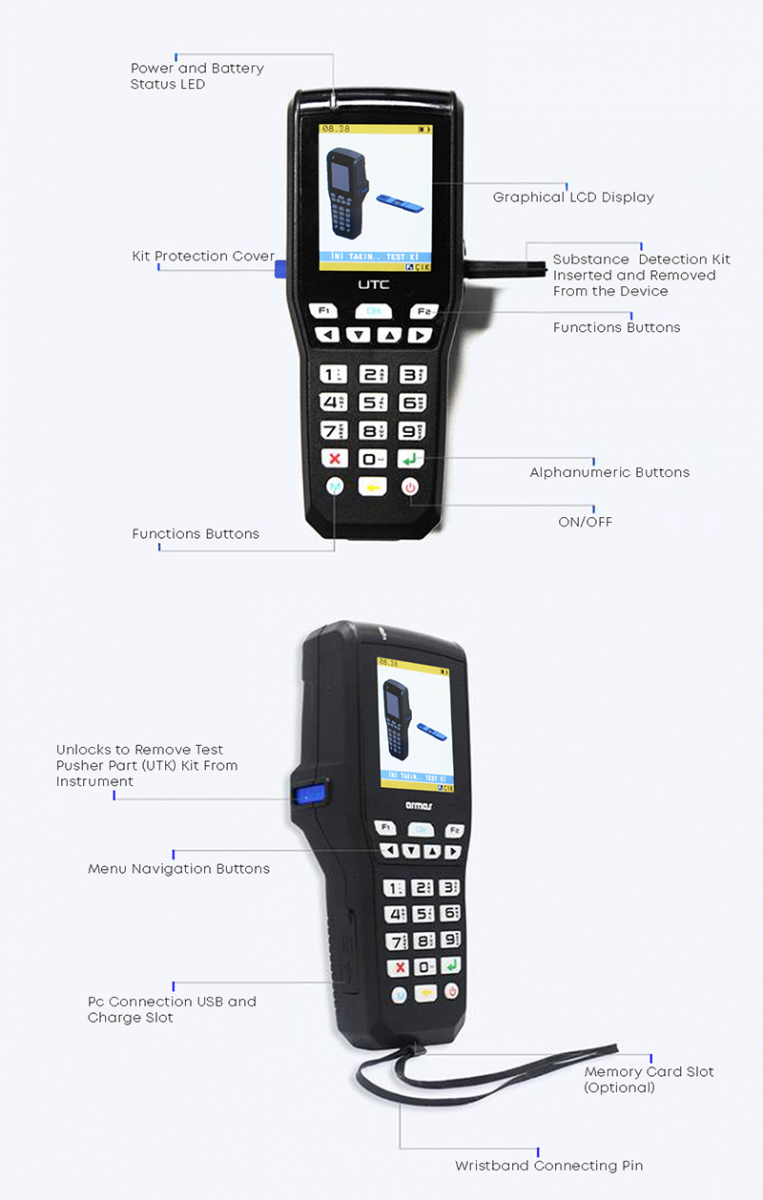

The Drug Tester (UTC) that works together with the Drug Test Kit (UTK) is a portable handheld device with battery. The UTC device is a high-tech device that optically interprets and evaluates the UTK kit's response to a saliva sample.

The information of individuals who performs test and who takes test are entered using keypad on UTC Drug Tester and saved in the device memory for evidence purpose. If required, the stored data can be scanned according to certain criteria, displayed on the screen and the test result or the data in the device memory can be printed out using the portable thermal printer (optional). In addition, the data stored in the memory can be transferred to the PC using UTC-DATA software.

The safety of test in vibration and shaking is ensured by locking the UTK kit in the UTC device. The analysis does not start unless the kit is fully locked in the device. In addition, thanks to RFID wireless communication between the Drug Test Kit UTK and the Drug Tester UTC, the UTC device reads the UTK kit information if the UTK kit to be analyzed is new and not used before, drug types, cut-off values, and tests. The UTC feature increases the reliability and safety level, using which UTC device does not test in case the test kit is expired or is used before.

The UTC tester that is designed with high technology provides accurate, reliable and precise results through the electronic analysis of the UTK kit, whose cut-off levels are adjustable depending on the requirement.


Technical Specifications

Drug Tester
  • Detection of 7 types (standard) of illegal substances (optional 9 types)
  • Easy and convenient data entry via keypad on the device
  • Capability of saving driver's name, surname and ID number, police’s ID number, registration number, name and surname in the internal memory
  • Memory scanning, displaying and printing the records
  • Transferring data from device to PC via USB with UTC-DATA PRO software (optional)
  • Printing reports from portable printer via Bluetooth communication
  • Preventing second time use and determining the substances on the UTK kit, expiration, whether the kit has been used before and cut-off levels with RFID feature (optional)
  • Measurement RET feature to record those who do not accept measurement
  • Record/report of inviduals who refuse to take drug test thanks to REFUSE feature
  • Deleting the recorded data by the user is prevented.
  • Saving information for user identification
  • Personnel authorization feature (optional)
  • Large graphic display
  • Rechargeable li-ion battery
  • Using real-time battery, real time processing for tests independent from the main battery
  • Charging in office and vehicle using 220VAC and 12VDC charging adapters
  • Keypad backlit and volume control
  • Display contrast feature
  • CE certification (EMC and LVD compliance)
Printer Technical Specifications;
Printing Method Direct Termal
Battery Rechargeable Ni-Mh or Li-ion
Interface Bluetooth
Paper Width 57,5 mm
Paper Diameter 40 mm
Indicators LED (error, no paper, cap is open, charging, normal/low battery)
Auto shutdown Yes
Selft Test Yes

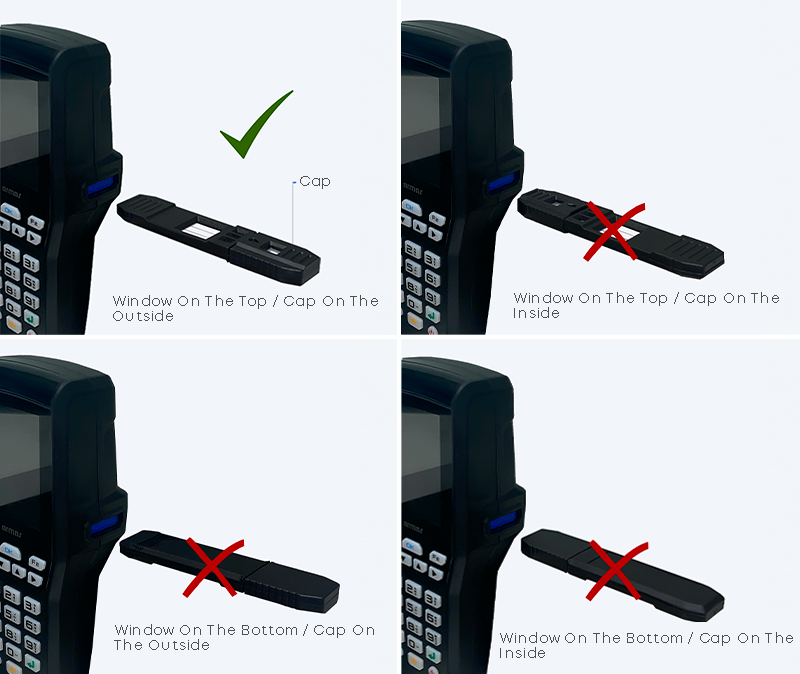

Inserting the UTK Drug Test Kit into the UTC Tester

Introduction
